用途：各种变压器及扼流圈。
| |

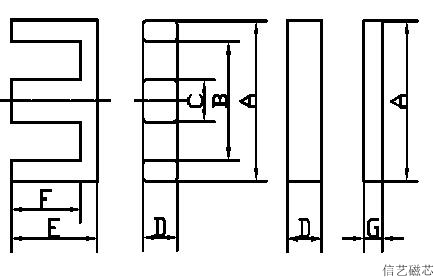

A(mm) |
B(mm) |
C(mm) |
D(mm) |
E(mm) |
F(mm) |
G(mm) |
| 型号 |
| EI42 |
42.0±0.7 |
29.5min |
12.0±0.3 |
20.0±0.3 |
21.2±0.3 |
15.3±0.3 |
6.1±0.3 |
| EI40B |
40.0±0.7 |
26.8min |
12+0-0.5 |
12+0-0.5 |
27.3±0.3 |
21+0.7-0 |
6.7±0.3 |
| EI40A |
40.2±0.7 |
26.8+1.1-0 |
12+0-0.7 |
12+0-0.7 |
27.5+0-0.5 |
20+0.5-0 |
7.8+0-0.6 |
| EI40 |
40±0.5 |
26.8min |
11.7±0.3 |
11.7±0.3 |
27.3±0.3 |
21.3±0.3 |
6.5±0.3 |
| EI34 |
33.5±0.5 |
24.5min |
9.75±0.25 |
12.7±0.3 |
23.95±0.2 |
19.05±0.2 |
5.0±0.2 |
| EI33D |
33±0.4 |
23.6min |
10-0.5 |
13-0.5 |
23.5+0.5-0 |
19+0.5-0 |
5±0.25 |
| EI33A1 |
33±0.5 |
24.0min |
9.75±0.25 |
12.7±0.3 |
23.95±0.2 |
19.05±0.2 |
5.0±0.2 |
| EI33A |
33±0.5 |
24min |
100-0.5 |
130-0.6 |
24.3±0.3 |
19.1+0.60 |
5±0.2 |
| EI33 |
33±0.5 |
23.6min |
9.7±0.3 |
12.7±0.3 |
23.75±0.25 |
19.25±0.25 |
5±0.3 |
| EI32 |
32.6±0.5 |
21.5min |
10.8±0.2 |
10.8±0.2 |
22.2±0.2 |
16.8±0.3 |
5.5±0.2 |
| EI30A1 |
30.25±0.5 |
20.1min |
10.65±0.25 |
10.65±0.25 |
21.6±0.2 |
16.6±0.3 |
5.5±0.2 |
| EI30A |
30±0.5 |
19.8min |
10.7±0.3 |
10.7±0.3 |
21.25±0.25 |
16.25±0.25 |
5.5±0.2 |
| EI30 |
30.25±0.5 |
20.1min |
10.65±0.25 |
10.65±0.25 |
21.3±0.2 |
16.3±0.3 |
5.5±0.2 |
| EI28F2 |
28.0±0.6 |
18.6 min |
7.3+0.1-0.3 |
10.7±0.3 |
17.3±0.25 |
12.8±0.25 |
3.5±0.3 |
| EI28F1 |
28±0.5 |
18.9min |
7.2±0.3 |
10.6±0.2 |
16.75±0.25 |
12.25±0.25 |
3.5±0.3 | |
